Function Introduction

Electronic setting of arbitrary values

Electronic setting,torque,angle,and speed can be set to any value

Multiple parameter settings

Multiple screws can support parameter settings for different torques,angles,and speeds

Meet different process requirements

●Supports torque+angle mode,enabling multiple process operations for a single screw

Tighten data traceability query

●Automatic data storage,real-time generation of data table files,and downloadable and transferable

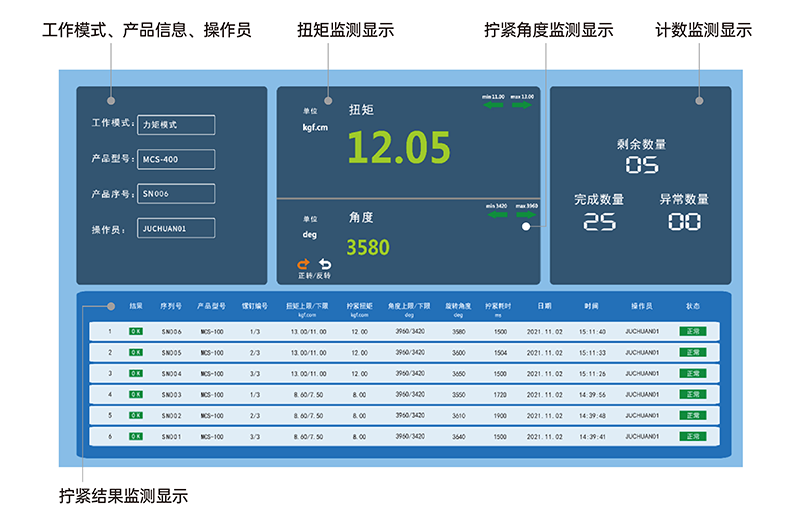

Tightening status monitoring display

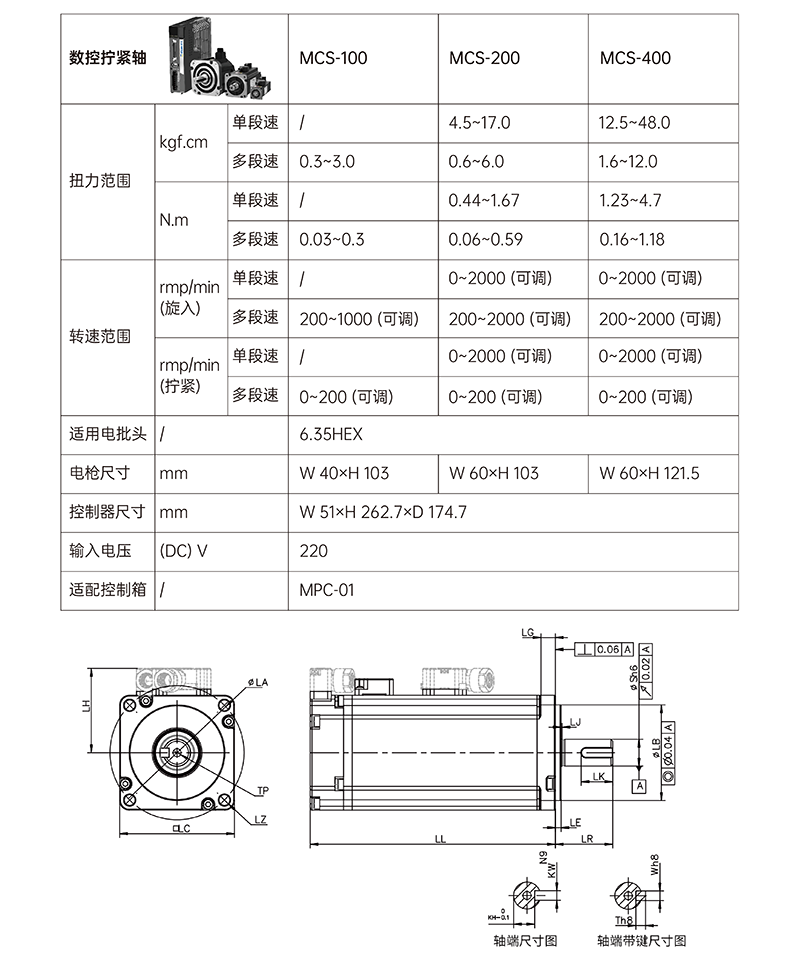

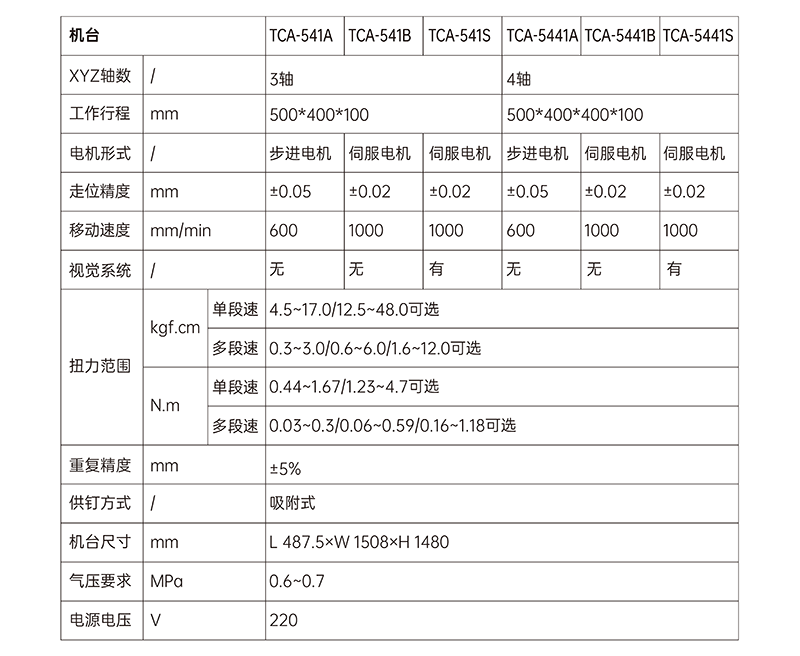

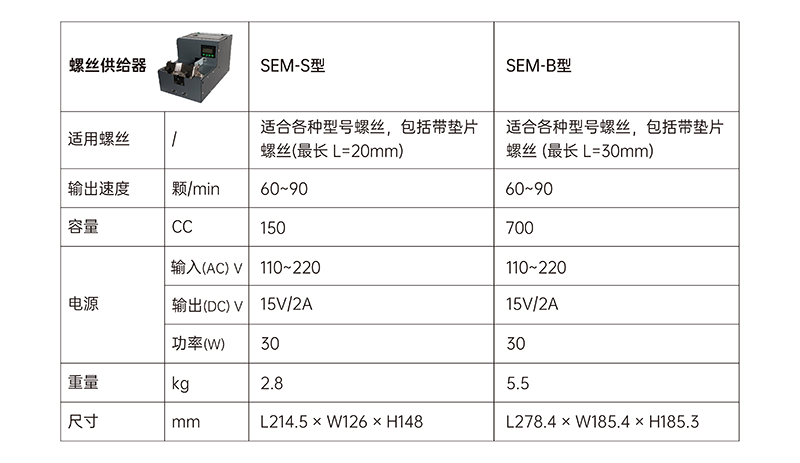

Specification parameters

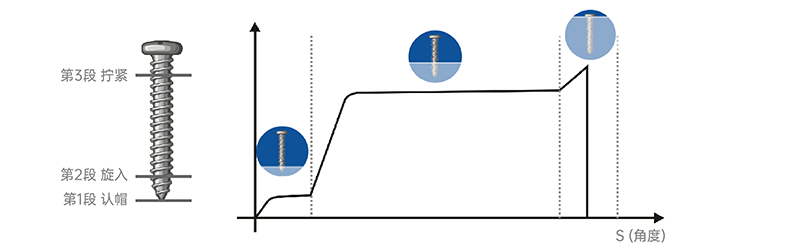

01 Torque+Angle Mode

① 認帽階段-該階段工具低速運行，螺絲與牙孔是否順利契合；

② 旋入階段-該階段工具高速運行，直到達到降速條件，整個過程扭矩回授較低，無明顯變化；

③ 擰緊階段-以該階段工具低速運行，設定目標扭矩或目標角度，完成鎖付任務。

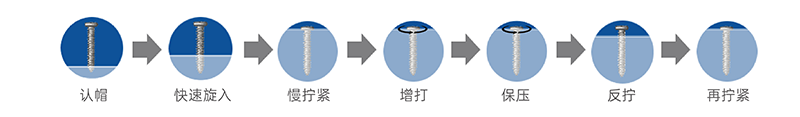

02 Tightening process

● 單顆螺絲可實現多種擰緊工藝，其扭力、轉角、轉速均可電子式設定。

● 多種螺絲可執行不同的扭力、轉速和角度值，其擰緊狀態和數據均可有效追溯。

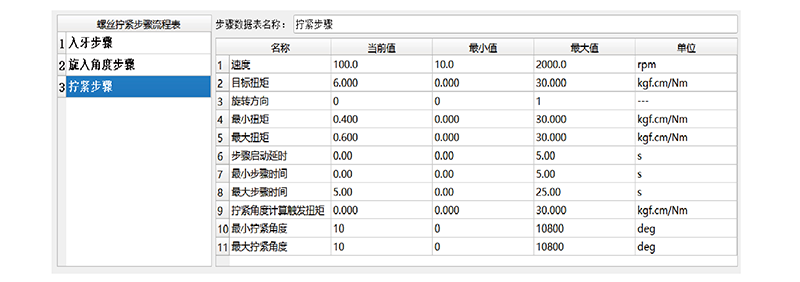

03 Electronic Setting of Parameters for Various Projects

● Various screw tightening steps can be systematically set: tooth insertion step, screw in angle step, and tightening step.

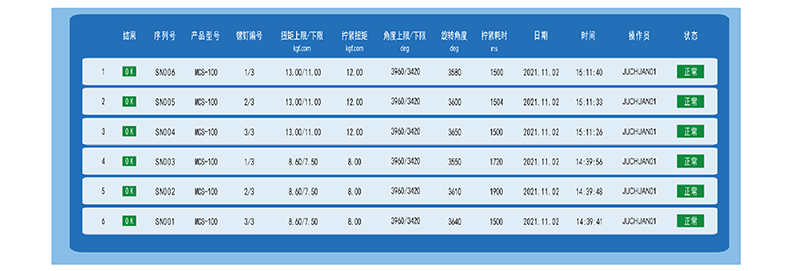

04 Multi directional real-time monitoring data - traceable

Real time display of tightening process data;

Multi directional data monitoring,with traceable tightening results,product serial numbers,current status,and other data;

●Automatic data storage,real-time generation of data table files;

Can be connected to MES system for data exchange.
